VT-BOX
VT-BOX is an Intelligent Vehicle Telematics Terminal with Android and wire/wireless communication..
高速存储突破极限
CPU Qualcomm Cortex-A7 32-bit Quad-core processor, 1.1GHz
GPU Adreno 304
Operating System Android 7.1
RAM 2 GB
Storage 16 GB
Bluetooth 4.2 BLE
WLAN IEEE 802.11a/b/g/n; 2.4GHz/5GHz
Mobile Broadband LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)
GNSS GPS / GLONASS
Interfaces GPIO ×2,ACC ×1
RS232×2
CANBUS×1
Sensors Acceleration
Power DC8-36V (ISO 7637-II compliant)
Physical Dimensions (WxDxH) 133W × 118.6H × 35D
Weight 305g
Environment Gravity drop resistance test: 150cm
Vibration test: MIL-STD-810G

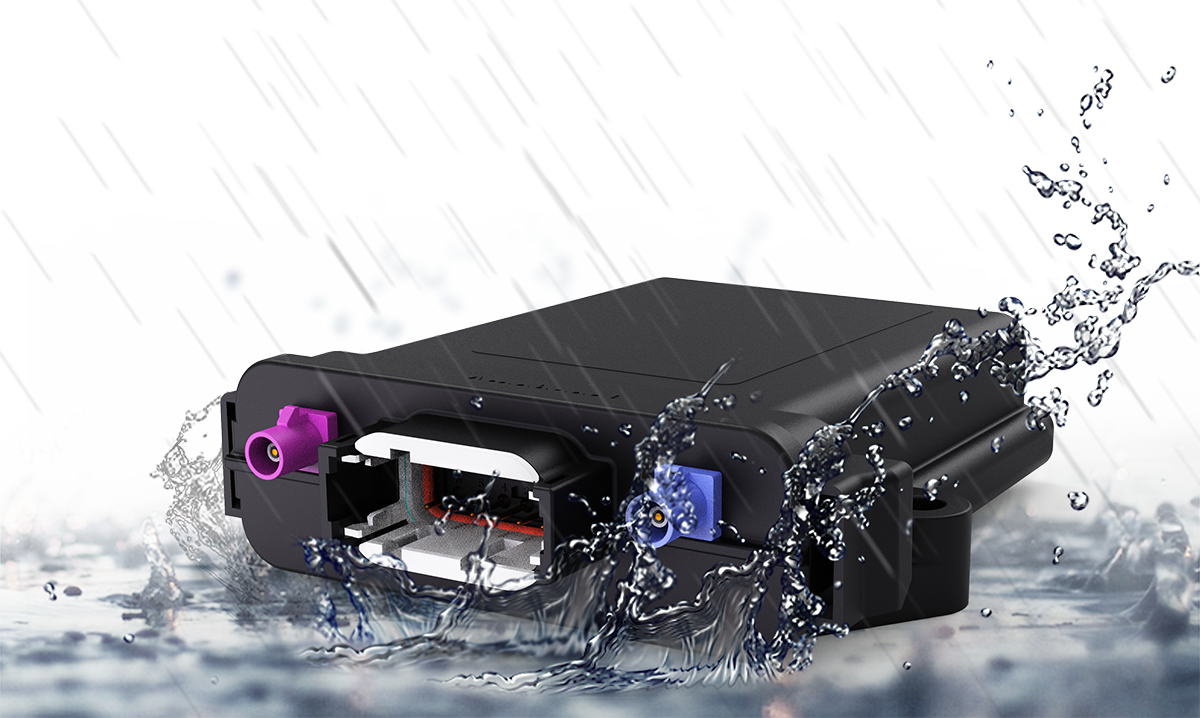

IP Ratings:IP67/69K
Salt Fog:96Hr
UV Exposure:500Hr
Operating temperature: -20° C ~ 70°C (-4°F-158°F)
Storage temperature: -30° C ~80° C (-22°F-176°F)

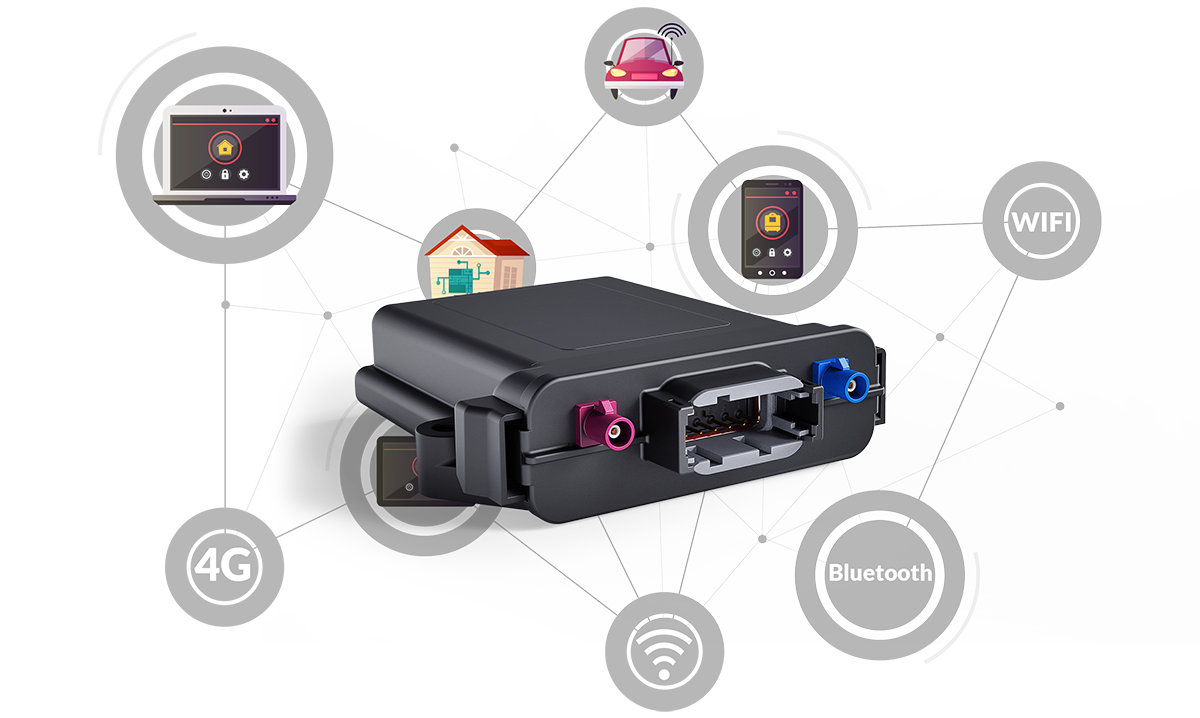

VT- Box is a new generation of telematics terminal. With powerful processor and memory, the open Android operating system provides a flexible environment and powerful functions for application development and integration. With a wealth of
wireless and wired vehicle and peripheral interfaces, it can act as an "in-vehicle hub" that can easily connect with other on-board devices, accessories and sensors to support advanced, resource-intensive applications.
This Product is Under Protection of Patent Policy
Tablet Design Patent No: 2020030331416.8, Bracket Design Patent No: 2020030331417.2
