4 X AHD Camera

With rugged design at IP67 rating, 3Rtablet’s AHD
cameras are applicable for both in-vehicle and
out-vehicle conditions.

The high sensitivity pixels its reproduced offer you the
most finite details and provide you with a safer driving
experience.

DMS (Optional)

DMS(Driving Monitoring System): Based on professional AI algorithm software, the DMS can monitor improper driving behaviors to ensure safety driving, like fatigue, distraction, smoking, yawn,etc.

Specification

System
	Qualcomm Cortex-A53 64-bit Octa-core Processor, 1.8GHz
GPU	Adreno 506
Operating System	Android 9.0
RAM	2 GB LPDDR3 (Default)/4GB (Optional)
Storage	16 GB eMMC (Default)/64GB (Optional)
Storage Expansion	Micro SD, Support up to 512 GB
Communication
Bluetooth	4.2 BLE
WLAN	IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz
Mobile Broadband (North America Version)	LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE TDD: B41 WCDMA: B2/B4/B5
Mobile Broadband (EU Version)	LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900MHz
GNSS	GPS/GLONASS
NFC (Optional)	Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 &424 kbit/s MIFARE 1K, 4K, NFC Forum type 1,2,3,4,5 tags, ISO/IEC 15693 All peer-to-peer modes Card Emulation Mode(from host): NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s; T3T FeliCa

Functional Module
LCD	7 Inch Digital IPS Panel, 1280 x 800, 800 nits
Touchscreen	Multi-point Capacitive Touch Screen
Camera (Optional)	Rear: 16.0 megapixel camera
Sound	Integrated microphone Integrated speaker 2W
Interfaces(On Tablet)	Type-C, SIM Socket, Micro SD Slot, Ear Jack, Docking Connector
Sensors	Gyroscope,Accelerometer
AHD Video Input	Video input: 4 x 720P AHD In dependentt input 1.0Vp-p,75
AHD Video Input	Video standard format: PAL format: 25 frams per second; NTSC format: 30 frams per second
AI Solution	ADAS: Lane departure, Forward collision, Headway monitoring
AI Solution	DMS: Driver ID management, driver abnormality, fatigue, Yawning, Camera block, Mouth block, Smoking, Distraction, Calling etc.
Video and Audio Compression	Video encoding format: H.265/H.264
	Video format: TS/MP4
	Image format (choose 1 of 2): PAL: 4x720P, NTSC:4x720P
	Dual Stream: Support Dual Stream
	Video bit rate: 192Kbps-4096Kbps(per channel)
Physical Characteristics
Power	DC 8-36V, 3.7V, 5000mAh battery
Physical Dimensions (WxHxD)	207.4×137.4×30.1mm
Weight	785g(1.73lb)

Environment
Gravity Drop Resistance Test	1.2m drop-resistance
Vibration Test	MIL-STD-810G
Dust Resistance Test	IP6x
Water Resistance Test	IPx7
Operating Temperature	-10°C ~ 65°C (14°F ~ 149°F)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)

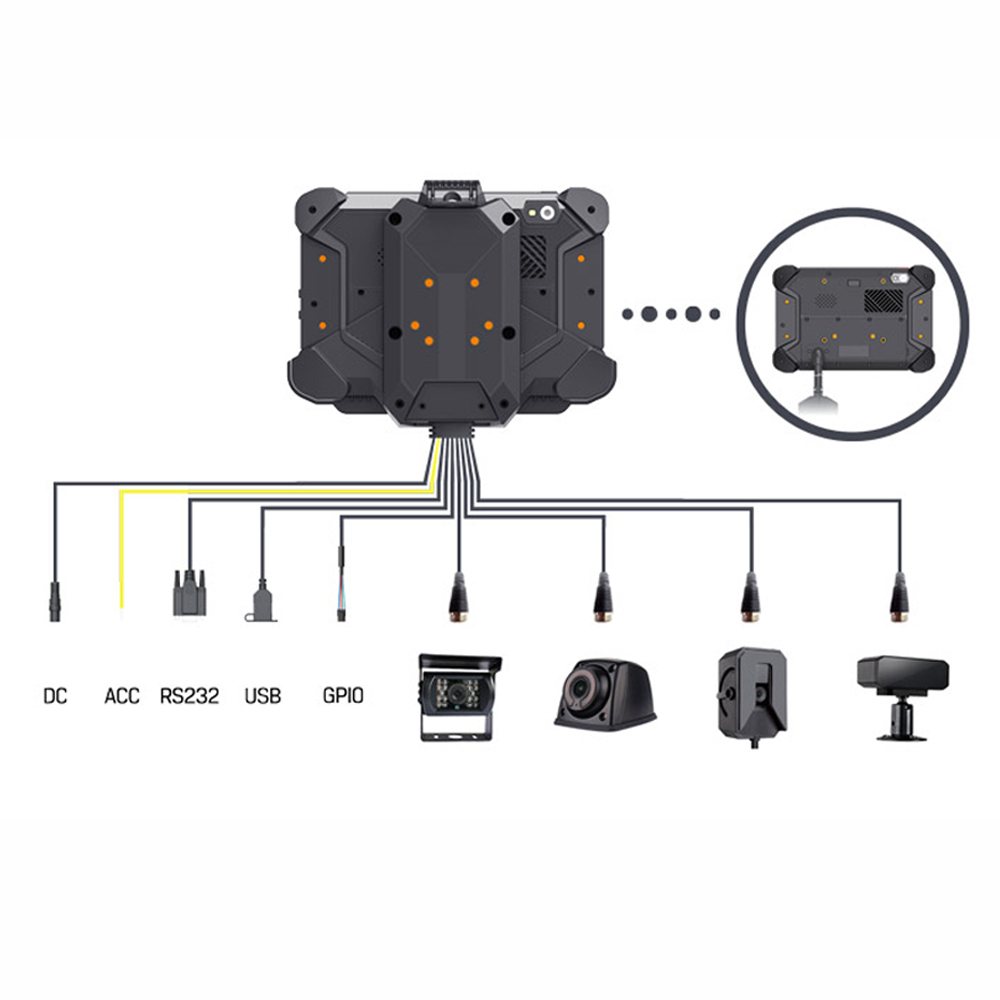

Interface(Docking Station)
USB2.0 (Type-A)	x1
RS232	x2
ACC	x1
Power	x1 (DC 8-36V )
GPIO	x2
AHD(support ADAS, DMS）	x4
CANBUS	Optional

This Product is Under Protection of Patent Policy
Tablet Design Patent No: 201930120272.9, Bracket Design Patent No: 201930225623.2, Bracket Utility Patent No: 201920661302.1

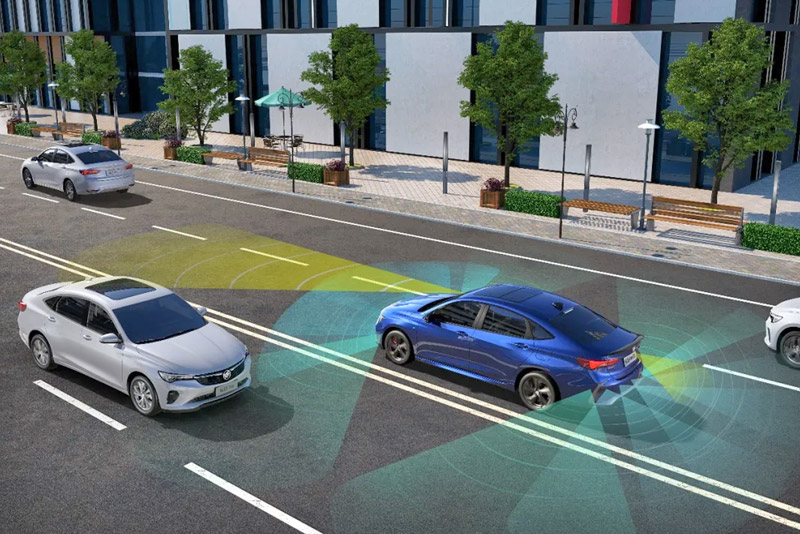

ADAS (Optional)

ADAS( Advanced Driving Assistant System):
The ADAS with a high dynamic range camera and
specialized algorithm, which can sense the vehicle's
surroundings and transform road conditions into voice
reminders and alarms in advance, so that drivers can take
proactive action in time and reduce potential risks
occurred on the road.

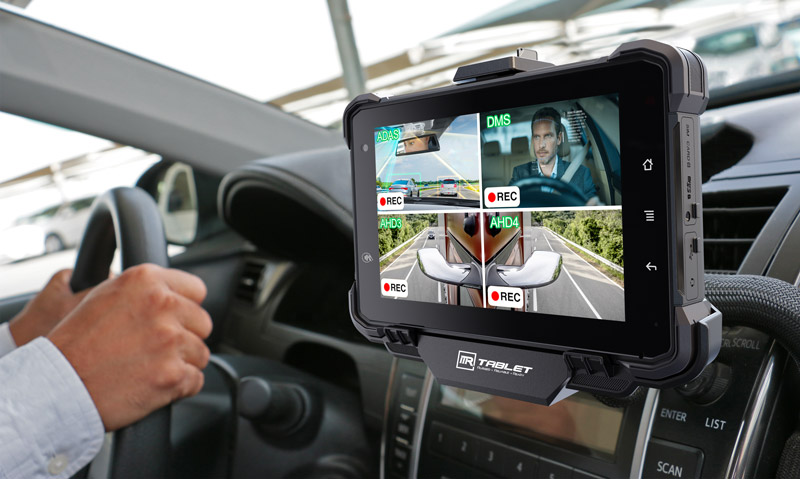

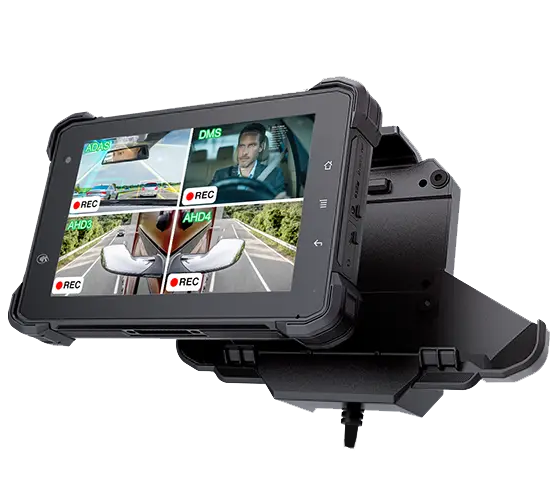

Real-Time Monitor and Record

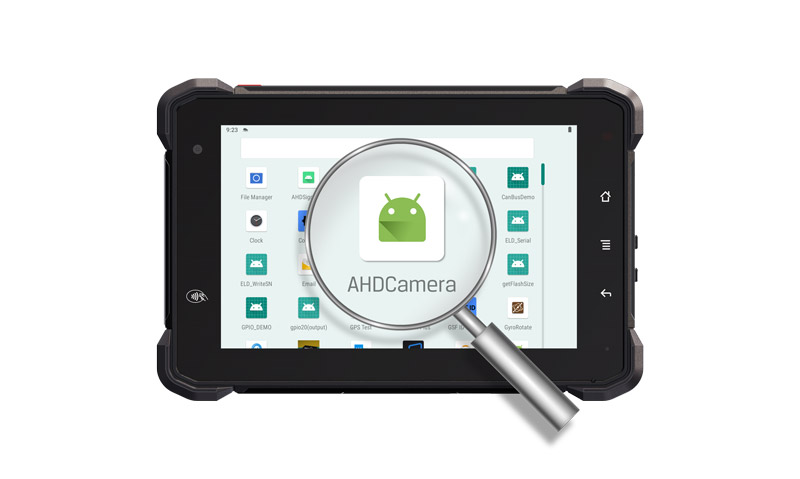

AHD camera from 3Rtablet can connect to tablet directly. The combination of tablet and cameras gives fleet managers the ability to real-time monitor and record the driver behavior and surrounding circumstance while also improving safety, reducing incidents and liability.
