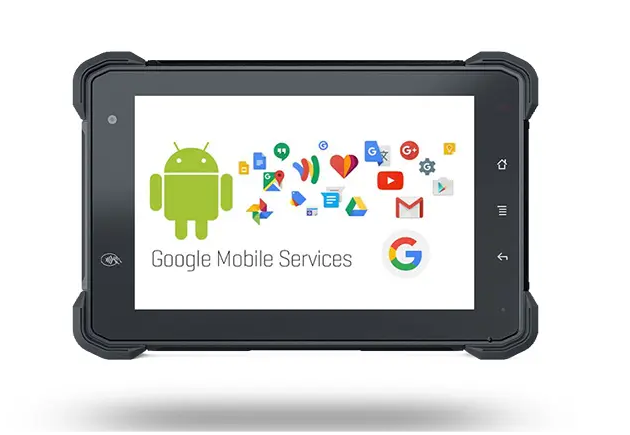

Google Mobile Services

Certified by Google GMS. Users can better enjoy Google services and ensure the functional stability and compatibility of the device.

Sunlight Readable Screen

800cd/m² higher brightness specifically in bright conditions with indirect or reflected bright light in harsh environment both in and out-of-vehicle. 10-point multi-touch screen allows for zooming, scrolling, selecting, and provides a more intuitive and seamless user experience.

Specification

System
CPU	Octa-core A53 2.0GHz+1.5GHz
GPU	GE8320
Operating System	Android 11.0 (GMS)
RAM	LPDDR4 3GB
Storage	32GB
Storage Expansion	Micro SD, Support up to 512 GB
Communication
Bluetooth	Integrated Bluetooth 5.0（BR/EDR+BLE）
WLAN	802.11a/b/g/n/ac; 2.4GHz&5GHz
Mobile Broadband (North America Version)	GSM: 850MHZ/900MHZ/1800MHZ/1900MHZ WCDMA: B1/B2/B4/B5/B8 LTE FDD: B2/B4/B7/B12/B17
Mobile Broadband (EU Version)	GSM: 850MHZ/900MHZ/1800MHZ/1900MHZ WCDMA: B1/B2/B4/B5/B8 LTE FDD: B1/B2/B3/B7/20/B28 LTE TDD: B38/B39/B40/B41
GNSS	GPS, GLONASS, BeiDou
NFC	Supports Type A, B, FeliCa, ISO15693

Functional Module
LCD	7 Inch Digital IPS Panel, 1280 x 800, 800 nits
Touchscreen	Multi-point Capacitive Touch Screen
Camera (Optional)	Front: 5.0 megapixel camera
Camera (Optional)	Rear: 16.0 megapixel camera
Sound	Integrated microphone
Sound	Integrated speaker 2W
Interfaces (On Tablet)	Type-C, SIM Socket, Micro SD Slot, Ear Jack, Docking Connector
Sensors	Acceleration, Gyro sensor, Compass, ambient light sensor
Physical Characteristics
Power	DC 8-36V, 3.7V, 5000mAh battery
Physical Dimensions (WxHxD)	207.4×137.4×30.1mm
Weight	815g

Environment
Gravity Drop Resistance Test	1.5m drop-resistance
Vibration Test	MIL-STD-810G
Dust Resistance Test	IP6x
Water Resistance Test	IPx7
Operating Temperature	-10°C ~ 65°C (14°F ~ 149°F)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)
Interface (Docking Station)
Docking Station Status	x1
USB2.0 (Type-A)	x1
RS232	x2(Standard) x1(Canbus Version)
ACC	x1
Power	x1 (DC 8-36V)
GPIO	Input x2 Output x2
Switch	x1 (Switch USB TYPE-C and USB TYPE-A)
CANBUS	Optional
RJ45 (10/100)	Optional
RS485	Optional
RS422	Optional

Interface USB2.0 (Type-A) ×1 RS232 ×2 Docking station status ×1 ACC ×1 Power ×1 CANBUS (1 of 3) CAN 2.0b (optional) J1939 (optional) OBD-II (optional) GPIO (Positive Trigger input) Input×2，Output×2 RJ45 (10/100) optional RS485 optional RS422 optional This Product is Under Protection of Patent Policy
Tablet Design Patent No: 201930120272.9, Bracket Design Patent No: 201930225623.2, Bracket Utility Patent No: 201920661302.1

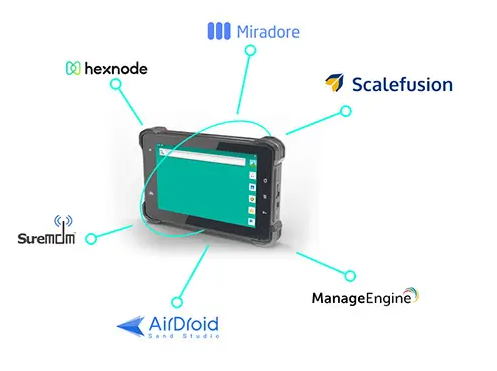

Mobile Device Management

Support several MDM management software, such as AirDroid, Hexnode, SureMDM, Miradore, Soti, etc.

All-round Ruggedness

TPU material corner drop protection provides all-round protection for tablet. Compliance with IP67 rating dust-proof and waterproof, 1.5m drop resistance, and anti-vibration and shocks standard by US Military MIL-STD-810G.

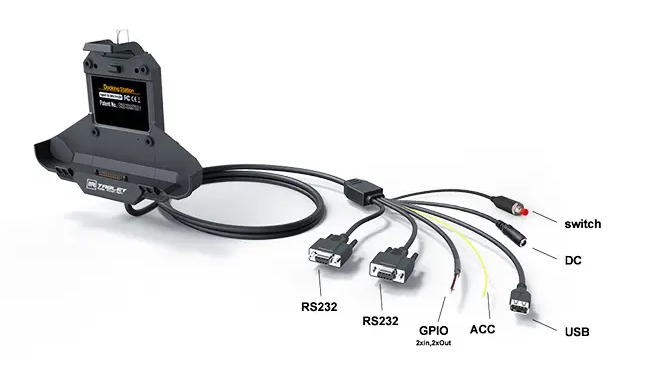

Docking Station

Security lock hold the tablet tightly and easily, ensures the safety of tablet. Built in smart circuit board to support customized functional interfaces such as: RS232, USB, ACC etc. The newly added button can switch the function of USB TYPE-C and USB TYPE-A.

Accessories

RAM USB To Type C Cable Power Adaptor

Allen Wrensh Screws for RAM SIM Card Plug
