android-12-rugged-tablet-with-ip67-rating-for-various-industries-vt-7a

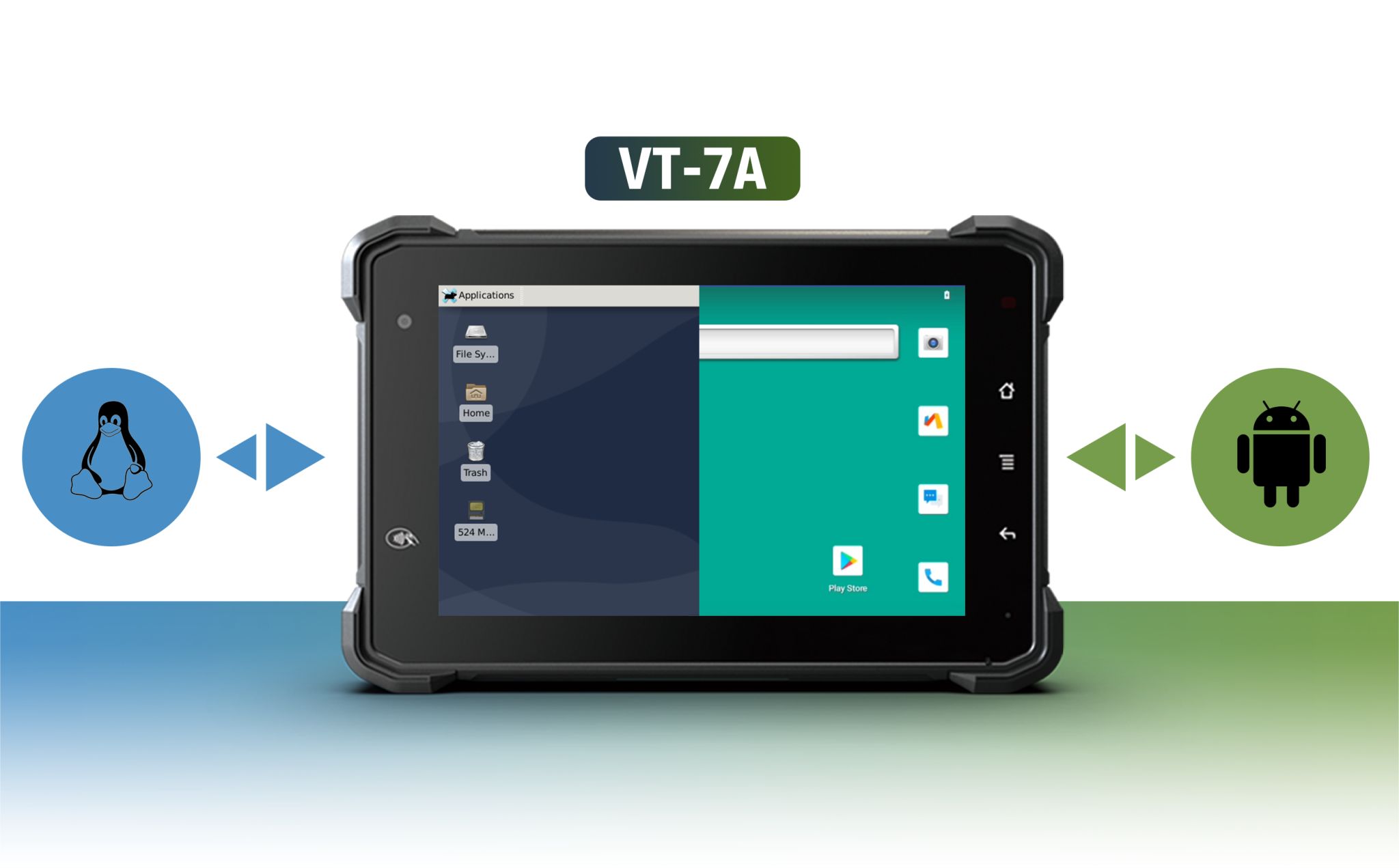

Support Android/Linux OS

Powered by new Android 12/Linux system, its superior performance brings users a brand new experience.

Real-time Communication

Built-in Wi-Fi/ Bluetooth /GNSS/4G functions making tracking and management of device status easier.

Specification

System
CPU	Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz
GPU	Adreno TM702
Operating System	Android 12 / Linux
RAM	LPDDR4 3GB
Storage	eMMC 32GB
Storage Expansion	Support up to 512G
Communication
Bluetooth	2.1 EDR/3.0 HS/4.2 LE/5.0 LE
WLAN	802.11a/b/g/n/ac；2.4GHz&5GHz
Mobile Broadband (North America Version)	LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE-TDD: B41
Mobile Broadband (EU Version)	LTE FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD:B38/B40/B41 WCDMA：B1/B2/B4/B5/B8 GSM/EDGE：850/900/1800/1900 MHz
GNSS	NA version:GPS/BeiDou/GLONASS/Galileo /QZSS/SBAS/NavIC, L1 + L5;AGPS ,Internal Antenna EM version:GPS/BeiDou/GLONASS/Galileo/ QZSS/SBAS, L1 ; AGPS ,Internal Antenna
NFC(Optional)	Supports Type A,B, FeliCa, ISO15693 etc.
Functional module
LCD	7" HD (1280 x 800), sunlight readable 800 nits
Touchscreen	Multi-point Capacitive Touch Screen
Camera (Optional)	Front: 5.0 megapixel camera(optional)
Camera (Optional)	Rear: 16.0 megapixel camera(optional)
Audio	Integrated microphone
Audio	Integrated speaker 2W
Interfaces(On Tablet)	Type -C, Docking Connector, Ear Jack
Sensors	Acceleration、Gyro Sensor、Compass、Ambient Light Sensor

Physical Characteristics
Power	DC 8-36V(ISO 7637-II compliant)
Physical Dimensions (WxHxD)	207.4×137.4×30.1mm
Weight	810g
Environment
Gravity Drop Resistance Test	1.2m drop-resistance
Vibration Test	MIL-STD-810G
Dust Resistance Test	IP6x
Water Resistance Test	IPx7
Operating Temperature	-10°C ~ 65°C (14°F ~ 149°F)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)

Interface(Docking Station)
USB2.0 (Type-A)	x 1
RS232	x 2
ACC	x 1
Power	x 1
Analog Input	x 1
GPIO	Input x 3 Output x3
CAN Bus 2.0, J1939, OBD-II	Optional (1 of 3)
RS485	Optional
RS422	Optional

Mobile Device Management

Integrated with MDM management software, supporting device management, remote control, mass deployment and upgrade etc.

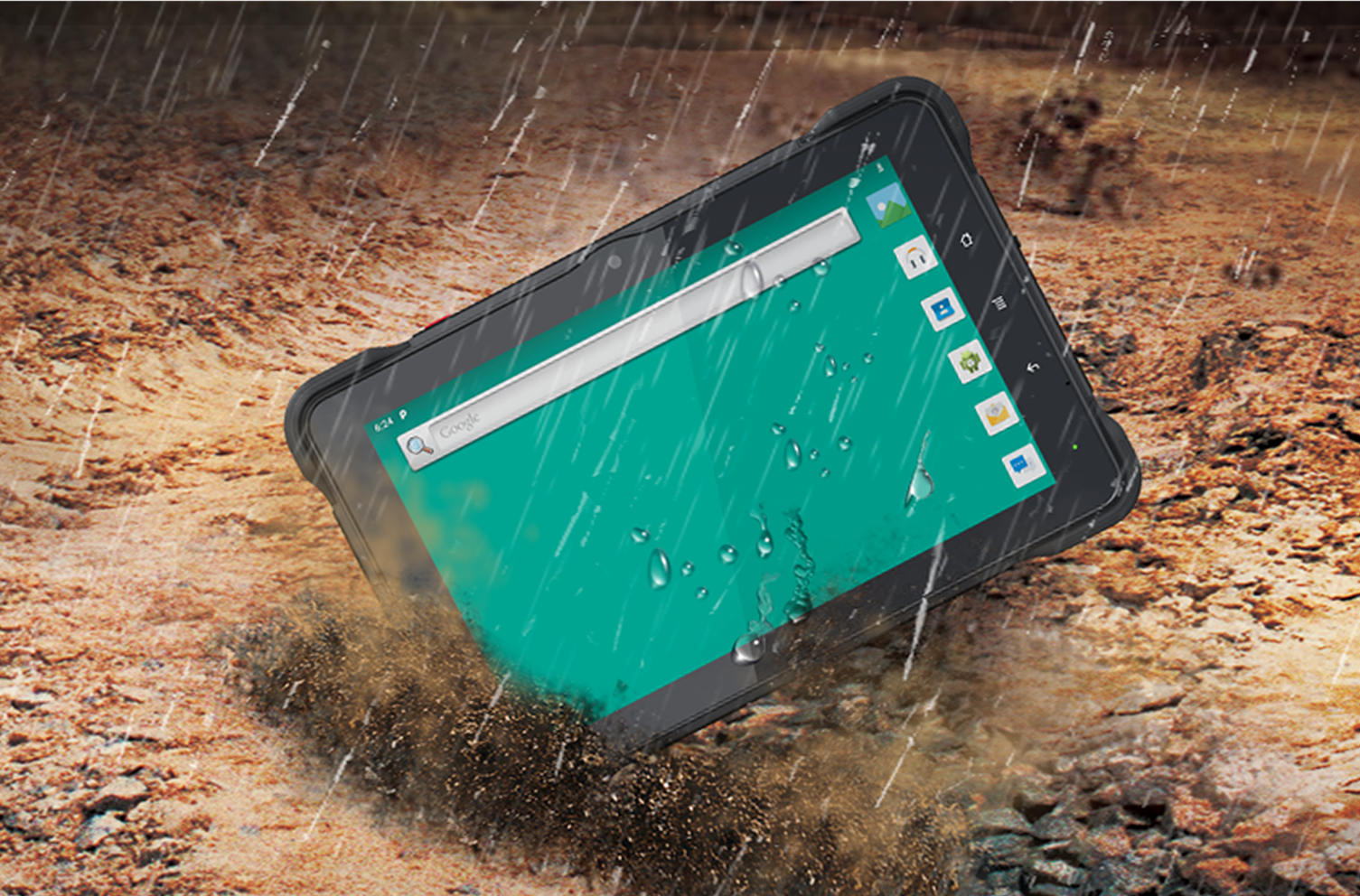

IP67 Rugged Design

Rugged IP67 design and 800 nits high brightness screen guarantee the application in varieties of harsh environments, suitable for vehicle, logistics, security and other industries.

ISO 7637 -II

ISO 7637-II standard transient voltage protection

Withstand up to 174V 300ms car surge impact

DC8-36V wide voltage power supply

Strong Compatibility

With rich interfaces of RS232, CAN Bus, RS485, GPIOs etc., customizable to meet different needs from users.

Accessories

Power Adaptor USB Cable RAM 1" Double Ball Mount Allen Wrench Screws

Wide Application Field

Rugged IP67 design and 800 nits high bright-ness screen guarantee the application in varities of harsh environments, suitable for vehicle, logistics, security and other industries.
