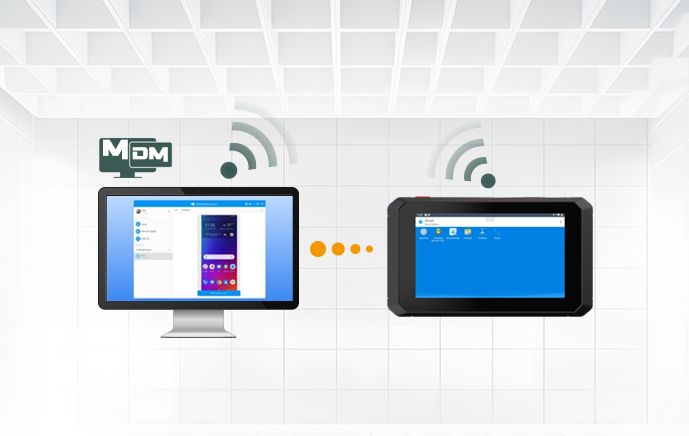

- MDM SOFTWARE
- OEM&ODM
- ABOUT US
VT-5A
Integrated with 5F Super Capacitor

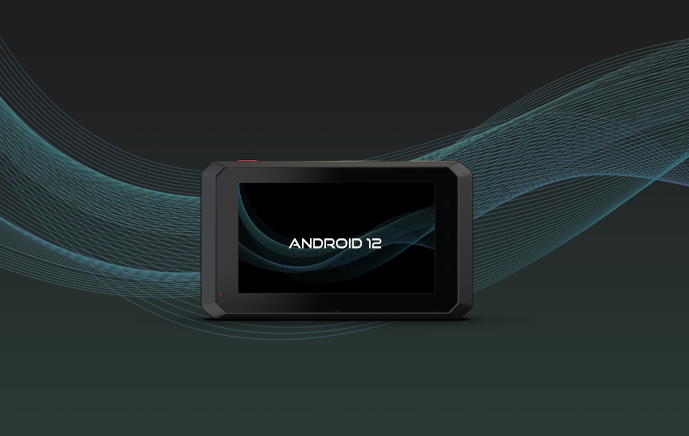

Powered by Android 12 for a newer using experience.
高速存储突破极限
Qualcomm CPU and Android OS
Powered by new Android 12 system,superior performance and the unique UI bring
users a brand new experience.
System |
|
CPU |
Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz |
GPU |
Adreno TM 702 |
Operating System |
Android 12 |
RAM |
3GB/4GB (optional) |
Storage |
32GB/64GB (optional) |
Functional Module |
|
LCD |
5 Inch Digital IPS Panel,854 x 480 |
Interfaces |
Mini USB(USB-A and Mini USB should not be used together) |
1 x Micro SD card, Support up to 512G |
|
1 x Micro SIM Card slot |
|
Standard 3.5mm earphone connector |
|
Camera |
Rear: 8.0 megapixel camera (optional) |
Power |
DC 8-36V(ISO 7637-II) |
Battery |
5F supercapacitor, which only takes 10min to charge, |
can keep the tablet working for about 10s. |
|
Sensors |
Acceleration, Compass, Ambient Light Sensor |
Screen |
Multi-point Capacitive Touch Screen |
Audio |
Integrated microphone |
Integrated speaker 1W |
|

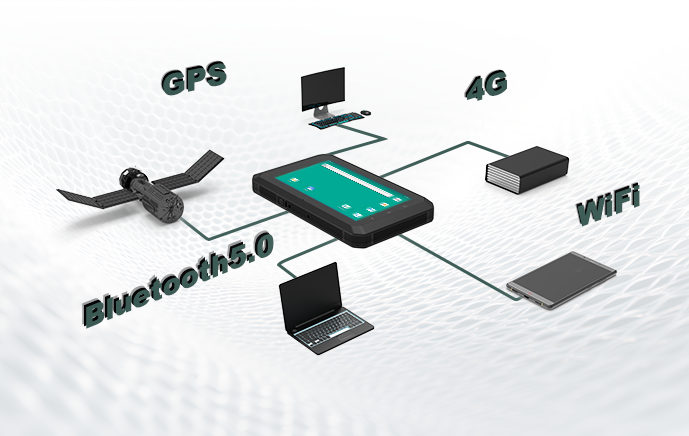

Communication |
|
Bluetooth |
2.1 EDR/3.0 HS/4.2 LE/5.0 LE |
WLAN |
802.11a/b/g/n/ac;2.4GHz&5GHz |
2G/3G/4G |
US Version(North America): |
LTE FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/ |
|
B26/B66/B71 |
|
LTE TDD: B41 |
|
EU Version(EMEA/Korea/South Africa): |
|
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
|
LTE TDD: B38/B40/B41 |
|
WCDMA: B1/B2/B4/B5/B8 |
|
GSM/EDGE:850/900/1800/1900 MHz |
|
GNSS |
NA version:GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS/ |
NavIC, L1 + L5; AGPS, Internal Antenna |
|
EM version:GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS, |
|
L1; AGPS, Internal Antenna |
|
NFC (Optional) |
● Read/Write Mode:ISO/IEC 14443A&B up to 848 kbit/s, |
FeliCa at 212 & 424 kbit/s, |
|
MIFARE 1K, 4K, |
|
NFC Forum type 1, 2, 3, 4, 5 tags, |
|
ISO/IEC 15693 |
|
● All peer-to-peer modes(included android BEAM) |
|
● Card Emulation Mode (from host): |
|
NFC Forum T4T (ISO/IEC 14443A&B) at 106 kbit/s, |
|
NFC Forum T3T (FeliCa) |
|

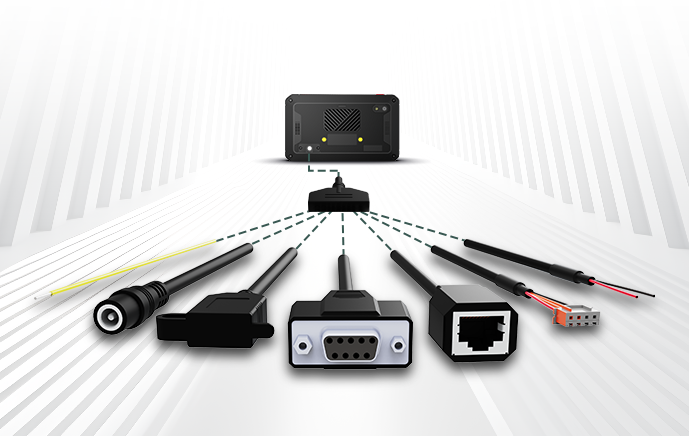

Extended Interface (All in one cable) |
|
Serial Port |
RS232 ×1 |
RS485 ×1 |
|
CANBUS |
×1 (optional) |
Ethernet |
×1 (optional) |
GPIO |
Input×2, Output×2 |
ACC |
×1 |
Power |
×1(8-36V) |
USB |
×1(Type A) |
Environment |
|
Operating temperature |
-10°C ~ 65°C (14°F ~ 149°F) |
Storage temperature |
-20°C ~ 70°C (-4°F ~ 158°F) |
Accessories
Power Adaptor USB Cable RAM 1" Double Ball Mount Allen Wrench Screws
(Optional) (Optional)
