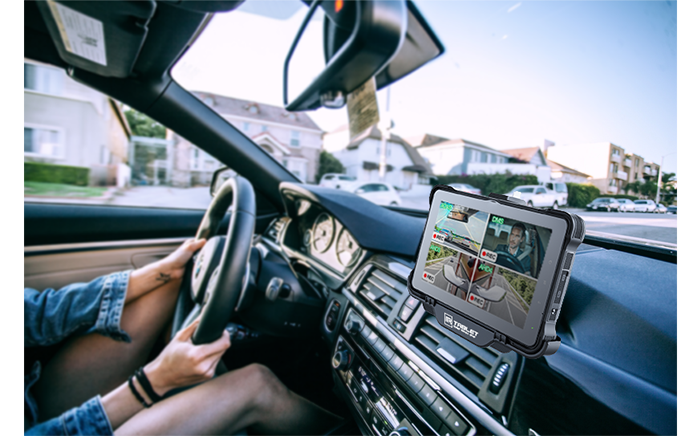

Real-Time Monitor and Record

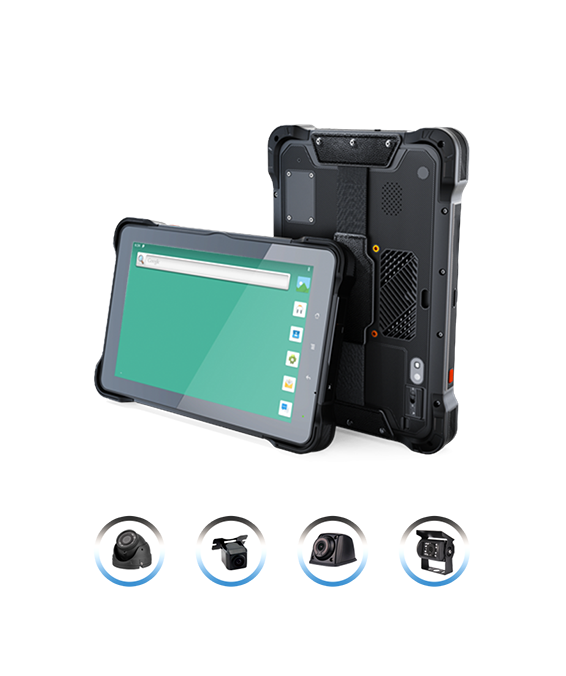

Integrated with 4-CH AHD Camera inputs supporting blind spot warning, rear view, driving assistance and monitoring to improve driving safety etc. Real-time monitor and record the driver's behaviors and surrounding circumstances, improving safety, and reducing incidents and liabilities.

ADAS/DMS (Optional)

3Rtablet offers AI solutions, which improve the solutions to reduce accidents and minimizing consequences by means of intelligent cameras and AI algorithms. Driver Monitoring System (DMS) enables tracking of driver behavior and presence, whereas the Advanced Driver Assistance System (ADAS) helps monitor the surrounding movements on the road.

Specification

System
CPU	Qualcomm Cortex-A53 Octa-core Processor, 1.8GHz
GPU	Adreno 506
Operating System	Android 9.0
RAM	2 GB LPDDR3(Default); 4GB (Optional)
Storage	16 GB eMMC (Default); 64GB (Optional)
Storage Expansion	Maximum Support Micro SD 512GB
Communication
Bluetooth	BLE 4.2
WLAN	IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz
Mobile Broadband (North America Version)	LTE FDD:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE TDD: B41 WCDMA: B2/B4/B5
Mobile Broadband (EU Version)	LTE FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900MHz
GNSS	GPS/GLONASS
NFC(Optional)	Read/Write Mode: ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 &424 kbit/s MIFARE 1K, 4K, NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693 All peer-to-peer modes Card Emulation Mode(from host): NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s; T3T FeliCa

Functional module
LCD	10inch HD (1280 x 800), sunlight readable 1000 nits
Touchscreen	Multi touch capacitive touchscreen
Camera (Optional)	Rear: 16 MP
Sound	Build-in speaker 2W, 85dB Internal microphones
Interfaces(On Tablet)	Type-C, Docking Connector, Headphones and Microphones (four-stage)
Sensors	Acceleration sensors, Ambient light sensor, Gyroscope, Compass
Physical Characteristics
Power	DC9-36V (ISO 7637-II compliant)
Physical Dimensions (WxHxD)	277×185×31.6mm
Weight	1357g

Environment
Gravity Drop Resistance Test	1.2m drop-resistance
Vibration Test	MIL-STD-810G
Dust Resistance Test	IP6x
Water Resistance Test	IPx7
Operating Temperature	-10°C ~ 65°C (14°F-149°F); 0°C ~ 55°C (32°F-131°F) (charging)
Storage Temperature	-20°C ~ 70°C
Interface(Docking Station)
USB2.0 (Type-A)	x 1
RS232	x 1
ACC	x 1
Power	x 1
GPIO	x 2
CAN Bus	x 1 (optional)
AHD (support ADAS, DMS)	x 4 (with 12V power output each)

This Product is Under Protection of Patent Policy
Tablet Design Patent No: 201930120272.9, Bracket Design Patent No: 201930225623.2, Bracket Utility Patent No: 201920661302.1

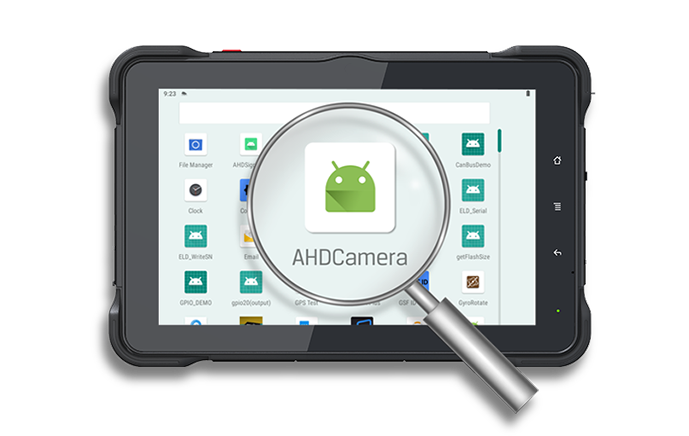

AHD APK

AHD Camerca APK is a software that supports 4-channel AHD video signal inputs for video surveillance and recording, uploading data to cloud server by wireless network. The SDK and other technical resources are provided to support software development to meet final customers' needs.

Mobile Device Management

(MDM)

3Rtablet’s MDM is a one-stop flexible solution regardless of company size, device owner, and device use case. Integrating the MDM platform to the tablets provides fleet managers with the ability to monitor, manage, track and secure their entire fleet.

Docking Station

Security lock holds the tablet tightly and easily, ensures the safety of tablet. Built in smart circuit board to support SAEJ1939 or OBD-II CAN BUS protocol with memory storage, compliance with ELD/HOS application. Support rich extended interfaces according to customer ‘s requirements, such as RS422, RS485 and LAN port etc.

Accessories

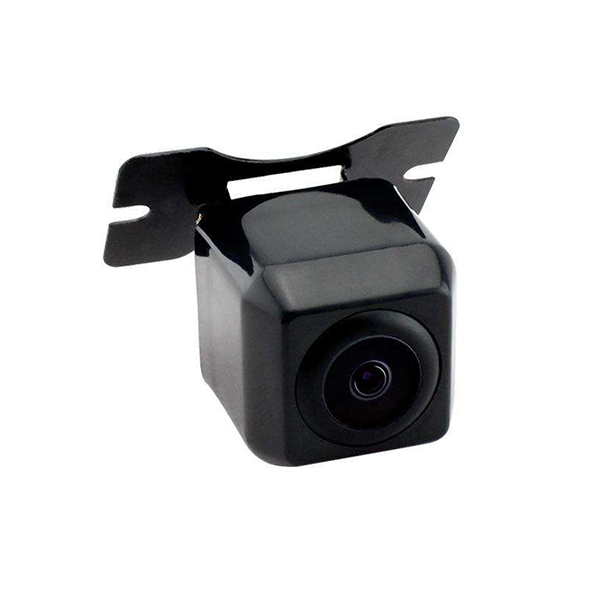

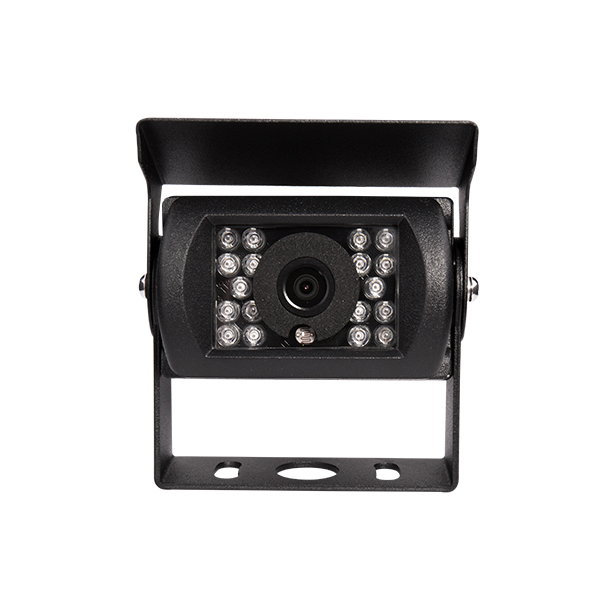

USB To Type C Cable Power Adapto Side View AHD Camera Rear View AHD Camera AHD-720S AHD-720R

Allen Wrench Screws for RAM

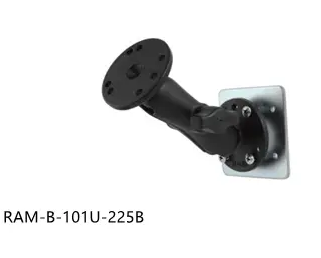

Dome AHD Camera Mini AHD Camera ADAS Camera DMS Camera RAM 1.5" Double Ball Mount

AHD-720D AHD-720 Mini AHD-1080DAS AHD-720DMS with Backing Plate

1000 Nits High Brightness IPS Panel

10.1 inch IPS Panel, 1280*800 resolution and 1000nits higher brightness, makes VT-10 Pro AHD tablet sunlight visible with better end user experience, especially for out-door environment.
