Feature

Rich communication

The small 5-inch tablet integrated with 4G, WI-FI, Bluetooth wireless communication. It is suitable for fleet management application and other smart control.

ISO-7637-II

Compliant with the automotive product ISO 7637-II standard Transient Voltage Protection, can withstand up to 174V 300ms car surge impact.

Wide voltage power supply design, DC input supports 8-36V.

High-precision GPS positioning

VT-5 tablet supports the GPS positioning system. High precise position and excellent data communications realize tracking your car anywhere and anytime.

Specification

CPU                                                                                Qualcomm Cortex-A7 32-bit Quad-core processor, 1.1GHz

GPU                                                                                Adreno 304

Operating System                                                         Android 7.1

RAM                                                                               2 GB

Storage                                                                          16 GB

Storage Expansion                                                        Micro SD 64 GB

LCD                                                                                5'(854 x 400) 450nits

Touchscreen                                                                  Multi touch capacitive touchscreen supporting glove and rain mode

Camera                                                                          Rear: 8 MP with LED light

Bluetooth                                                                       4.2 BLE

WLAN                                                                             IEEE 802.11a/b/g/n; 2.4GHz/5GHz

Mobile Broadband                                                        LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice)

GNSS                                                                              GPS/GLONASS

NFC                                                                                Read/Write Mode:ISO/IEC 14443 A&B up to 848 kbit/s, FeliCa at 212 &424 kbit/s

                                                                                       MIFARE 1K,4K,NFC Forum type 1,2,3,4,5 tags,ISO/IEC 15693 All peer-to-peer modes

                                                                                       Card Emulation Mode(from host):NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s

Sound                                                                            Build-in speaker 1W

                                                                                       Internal microphones

Interfaces                                                                      mini USB, ( data transfer support )

                                                                                       3.5mm headphone jack

Sensors                                                                          Acceleration sensors, ambient light sensor, compass

Power                                                                             DC8-36V (ISO 7637-II compliant)

                                                                                        Battery: 3.7V, 1650mAh Li-ion

                                                                                        Battery operating time: about 3hours (Typical)

                                                                                        Battery charging time: about 3hours

Physical Dimensions                                                     152*84.2*18.5 mm

Weight                                                                           450g

Environment                                                                 Operating temperature:

                                                                                       -10°C ~ 65°C (14°F-149°F)

                                                                                       0°C ~ 50°C (32°F-122°F) (charging)

                                                                                       Storage temperature: -20° C ~70° C

Overview

VT-5 is a 5-inch small and thin tablet for fleet management. It’s integrated with GPS, LTE, WLAN, BT wireless communication, and it comply with abundant interfaces including RS232, GPIO, ACC. The ISO-7637-II power circuit design is better to protect the tablets anti surge in the vehicle working environment. It’s rugged design to support RAM mount brackets mounting in the shield wind or dash board in cab.

This Product is Under Protection of Patent Policy

Tablet Design Patent No: 2020030331416.8,       Bracket Design Patent No: 2020030331417.2

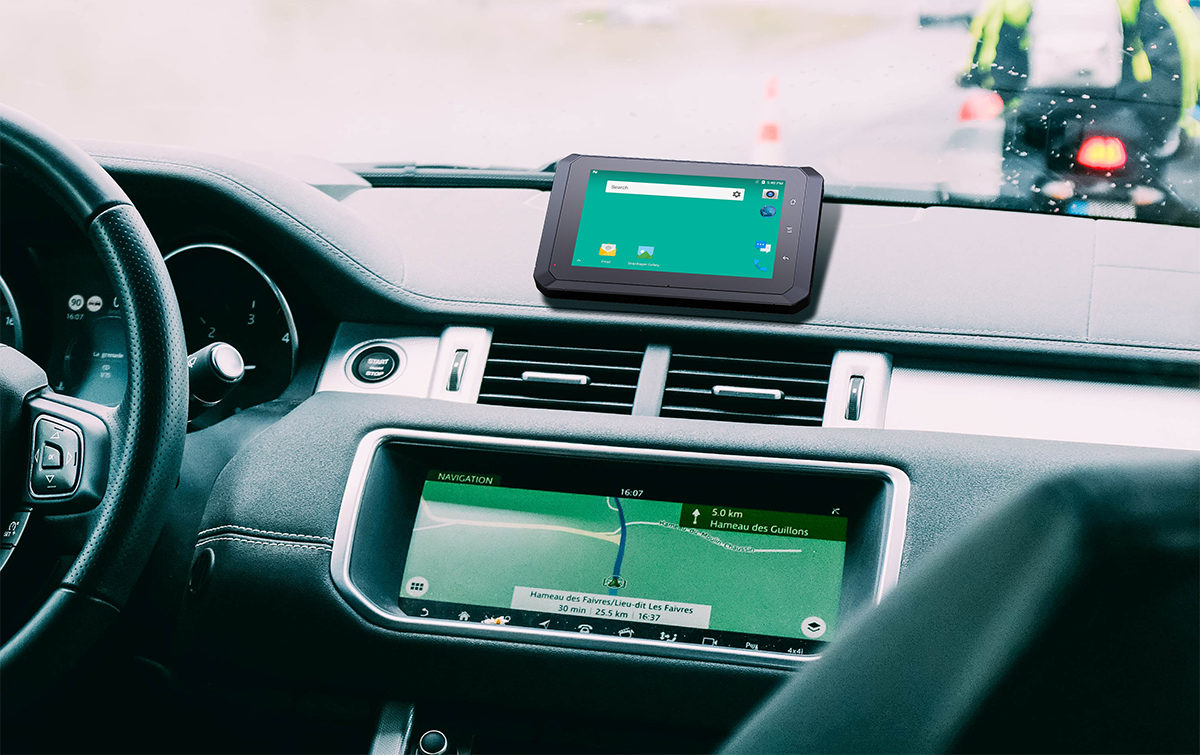

Convenient installation

The tablet with small, thin and light design, is convenient for end users to quickly install and remove the tablet from tablet mount..

Stable and reliable CPU

VT-5 powered by Qualcomm CPU with industrial grade components on board to ensure that the product with good quality and high performance in field.

Rich IO Interfaces

All-in one cable design makes the tablet operation stability in high vibration environment. VT-5 with power, RS232, RS485, GPIO, ACC and extensible interfaces, makes the tablet well applied in different telematics solutions.

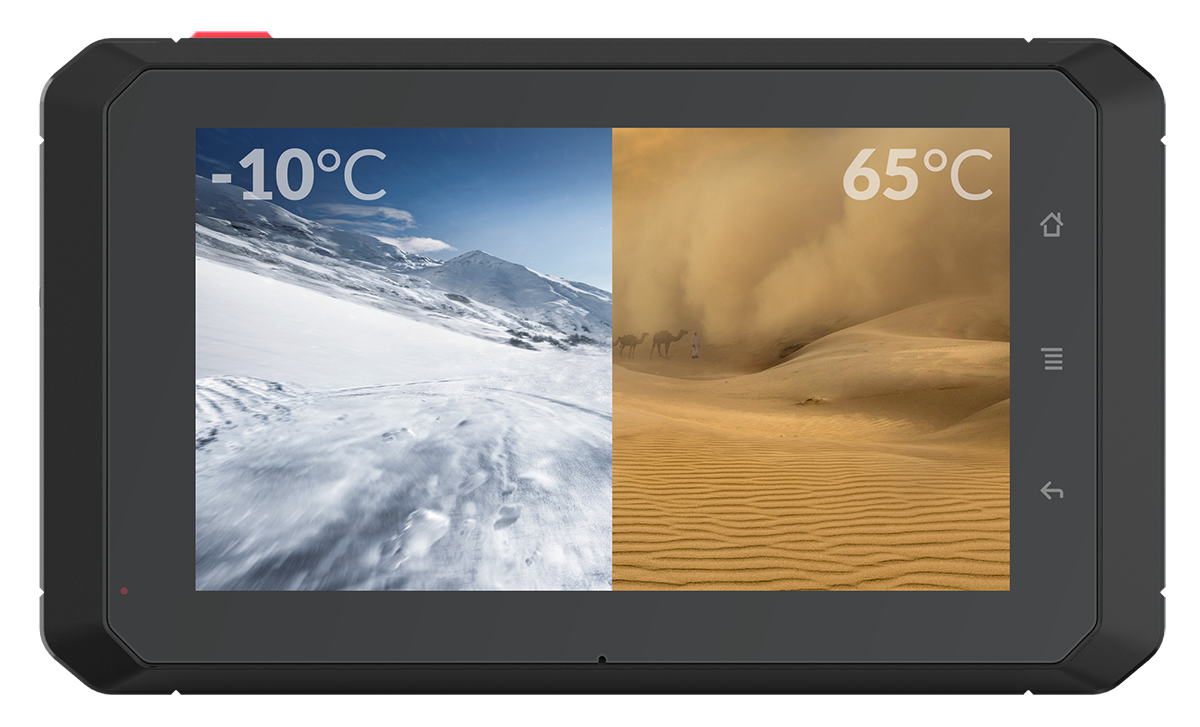

Wide operating temperature range

VT-5 support to work in wide range of operating temperature for outdoor environment, it supports the temperature range of 10°C ~65°C with reliable performance for fleet management or smart agricultural control.
