Feature

Real-time tracking (Optional)

Integrated with Wi-Fi,bluetooth,4G LTE network connection, multi-satellite running GPS+GLONASS+Galileo provides the easiest way to track your vehicle and asset management.

High brightness

1000 nits high brightness with muilt-touch screen makingtablet operating smoothly and readable in sunlight conditionand outdoor environment.

MIL-STD-810G

Comply with the U.S. military standard MIL-STD-810G shock and vibration resistance, can be applied to a variety of complex and demanding working environments.

Specification

CPU                                                                                NXP i.MX 8M Mini, ARM® Cortex®-A53 1.6GHz

GPU                                                                                1x shader, Vivante GC320, Vivante GCNanoUltra

Operating System                                                         Linux Debian 10

RAM                                                                               2 GB LPDDR3(Default)/4GB(Optional)

Storage                                                                          16 GB eMMC (Default) / 64GB (Optional)

Storage Expansion                                                        Micro SD 256 GB

LCD                                                                                10.1inch HD (1280 x 800), 1000cd/m² higher brightness, Sunlight readable

Touchscreen                                                                  Multi touch capacitive touchscreen supporting glove and rain mode

Bluetooth                                                                       BLE5.0 (Optional)

WLAN                                                                            IEEE 802.11 a/b/g/n/ac; 2.4GHz / 5GHz (Optional)

Mobile Broadband                                                        LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice) (Optional)

GNSS                                                                              GPS / GLONASS (Optional)

Sound                                                                            Build-in speaker 2W, 85dB

                                                                                       Internal microphones

Interfaces                                                                     Type-C, Compliant with USB 2.0,(For data transfer;support OTG)

                                                                                      3.5mm headphone jack

Sensors                                                                         Acceleration sensors, ambient light sensor,Gyroscope, compass

Power                                                                            DC9-36V (ISO 7637-II compliant)

                                                                                       Battery: 3.7V,8000mAh Li-ion (Replaceable)

                                                                                       Battery operating time: about 4.5hours (Typical)

                                                                                       Battery charging time:about 4.5hours

Physical Dimensions (WxDxH)                                   277×185×31.6mm

Weight                                                                           1357(2.99lb)

Environment                                                                 Gravity drop resistance test: 120cm

                                                                                       Vibration test: MIL-STD-810G

                                                                                       Dust resistance test: IP6x

                                                                                       Water resistance test: IPx7

                                                                                       Operating temperature: -10° C ~ 65°C(14°F-149°F)

                                                                                       charging temperature: 0° C ~ 55°C (32°F-131°F)

                                                                                       Storage temperature: -20° C ~70° C

Overview

VT-10 IMX is a rugged and reliable vehicle-mounted computer, which is widely used in fleet management, advanced farming system, special industry vehicles, etc. The extremely robust industrial grade hardware ensures perfect usage in various harsh environments. The excellent performance of i.mx8 makes all control simple, Linux open platform Debian 10 provides a flexible environment for development.3Rtablet's products can be tailored to meet your final needs in term of hardware, software, interface or functions required.

This Product is Under Protection of Patent Policy

Tablet Design Patent No: 2020030331416.8,       Bracket Design Patent No: 2020030331417.2

NXP CPU

High-performance and low-power NXP i.MX8 Mini 4xCortex A53 CPU makes the tablet running stably and efficiently, suitable for a variety of application scenarios in industry with high security and reliability.

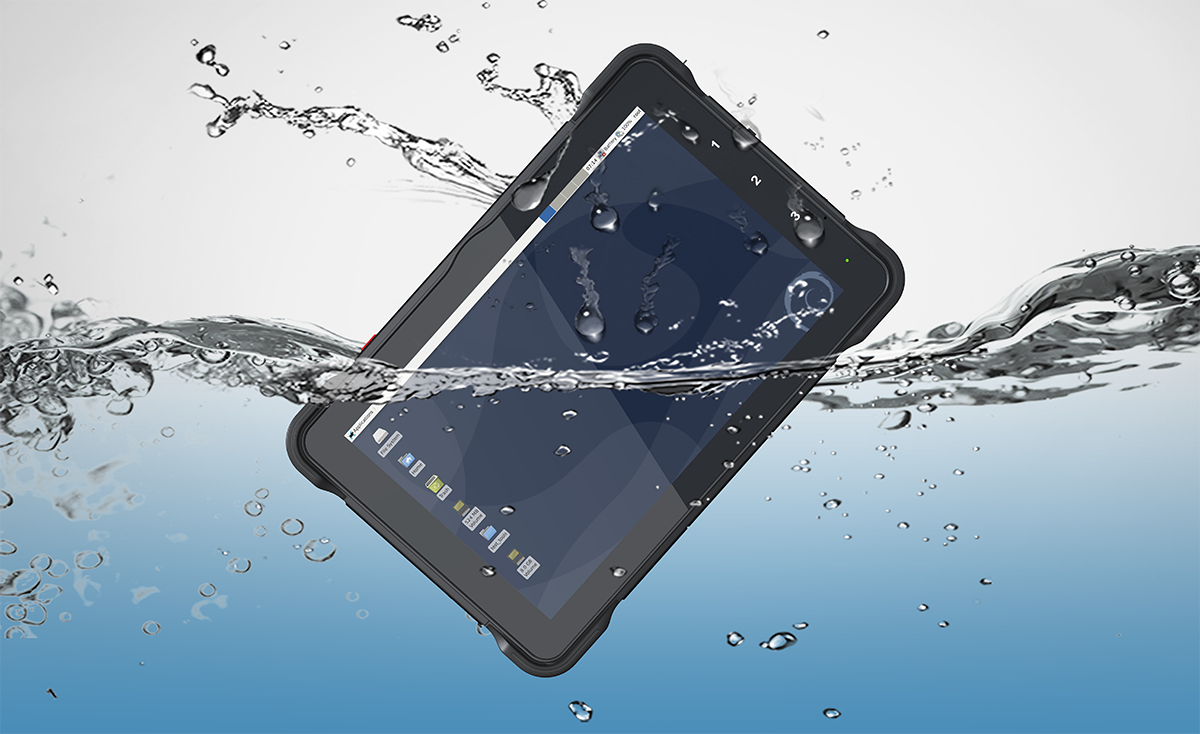

IP67 Water & Dust proof

The tablet has a high level of dust and water resistance IP67, is well adaptable to environments such as industrial, mining, agriculture, etc.

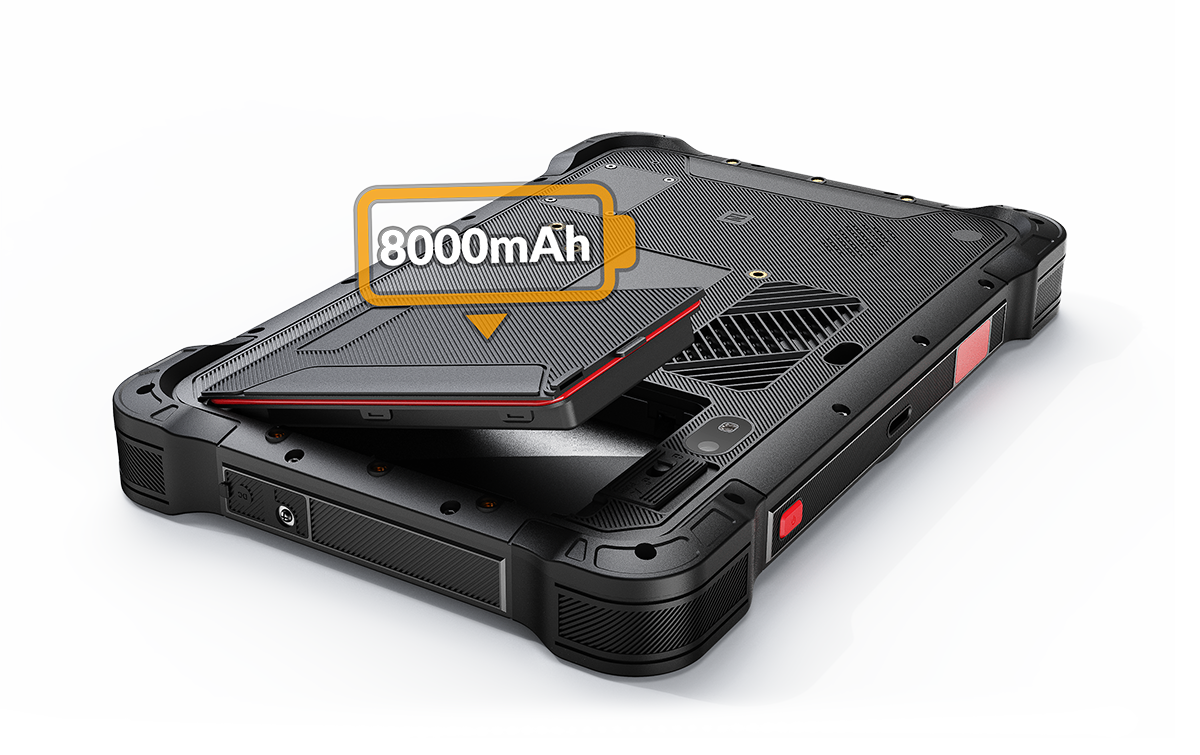

8000mAh Battery Replaceable (Optional)

The optional 8000mAh large-capacity battery provides the necessary protection for the tablet for a long time in the event of a power failure and easy for replaceable.
