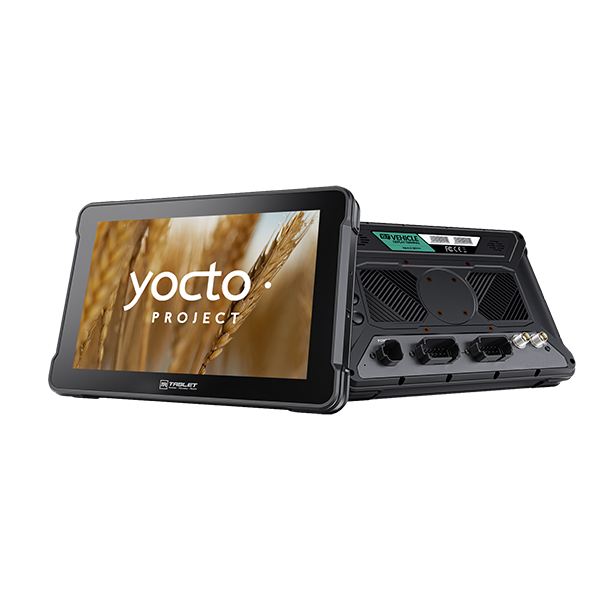

AT-10AL

10.1 inch Rugged Linux Tablet
With 1000 nits sunlight readable, wet-touch and glove-touch screen, makes it more suitable for outdoor work. Built-in 10F super capacitor, ensure the stable performance in extreme temperature conditions and prevent the data loss by sudden power outage.

넳 넲

高速存储突破极限

///

High Brightness Screen

With 1000 nits high brightness screen, readable in the sunlight environments.

Qt Platform

Qt platform provides a cross-platform C/C++ graphical user interface application development framework, which has strong scalability and is convenient for software development.

Specification

System
CPU	NXP i. MX 8M Mini, ARM® Cortex®-A53 Quad-Core Quad-Core 1.6GHz
GPU	3D GPU(1xshader, OpenGL®ES 2.0)2D GPU
Operating System	Yocto (Kernel version: 5.10.72)
RAM	2 GB LPDDR3 (Default)/4GB (Optional)
Storage	16 GB eMMC (Default)/64GB (Optional)
Storage Expansion	Micro SD 128 GB
Functional Module
LCD	10.1 inch HD (1280x800), 1000cd/m2 higher brightness, Sunlight readable
Screen	Multi touch capacitive touchscreen supporting glove and rain mode (Optional)
Sound	Build-in speaker 2W, 90dB
Sound	Internal Microphones
Interfaces	Type-C, Compliant with USB 2.0 (For data transfer; Support OTG)
	USB 2.0 (Type-A)
	3.5mm headphone jack
Sensors	Acceleration sensors, Ambient light sensor, Gyroscope, Compass
Environment
Vibration Test	MIL-STD-810G
Dust Resistance Test	IP6x (IEC60529)
Water Resistance Test	IPx7 (IEC60529)
Operating Temperature	-20°C ~ 65°C (-4°F ~ 149°F）
Storage Temperature	-30°C ~ 70°C (-22°F ~ 158°F)
Communication (Optional)
Bluetooth	BLE5.0 (Optional)
WLAN	IEEE 802.11 a/b/g/n/ac; 2.4GHz/5GHz (Optional)
Mobile Broadband	LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Optional)
GNSS	GPS/GLONASS (Optional)
Physical Characteristics
Power	DC9-36V (ISO 7637-II compliant)
Battery	10F Supercapacitor
Physical Dimensions	273 × 183 × 49 mm
Weight	1.6kg
Extended interface
Interfaces	RS232 × 2
	ACC × 1
	Power × 1
	Can ×1
	GPIO (Positive Trigger Input): Input × 4, Output × 4
	RJ45 (10/100) × 1 (1000M)
	RS485 × 1
	Analog Input × 1

Accessories

Torx Screwdriver & Screws Power Cable GNSS Antenna (optional) LTE Antenna (optional)

Wet Touch and Glove Touch

Support wet touch and glove touch function, ensuring excellent responsiveness even when the operator's figures are wet or they are wearing gloves.

Real-time Communication (optional)

Built-in Wi-Fi/ Bluetooth /GNSS/4G functions. Easily track and manage the

equipment status.

ISO 7637-II

Complied with ISO 7637-II standard transient voltage protection. Withstand up to 174V 300ms vehicle surge impact. Support DC8-36V wide voltage power supply.

Rich Interfaces

With video input, RS232, RJ45, CANBUS, GPIO etc. extended interfaces for connecting peripheral devices.

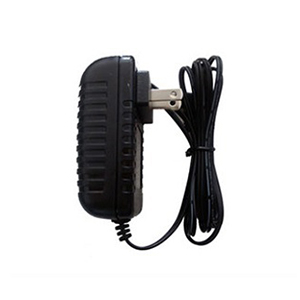

Extension Cable (optional) Anti-glare Film (optional) Double U-Bolt Rail Mount Power Adaptor (optional)

RAM-101U-235 (optional)
