AT-10A
Rugged display for precision agriculture.
With a 10-inch 1000 nits touch screen, rich interfaces, Octa-core 2.0GHz processor, Adreno 506 GPU, etc., AT-10A shows high performance and durability.
高速存储突破极限

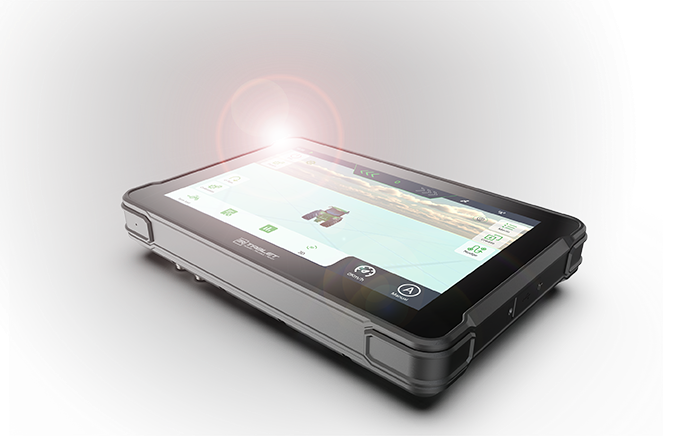

High Brightness Screen
With 1000 nits high brightness screen, readable in the sunlight environments.
Rich Interfaces
With video input, RS232, RJ45, CANBUS, GPIO etc. extended interfaces for connecting peripheral devices.
| System | |
| CPU | Qualcomm Cortex-A53 64-bit Octa-core Processor, 1.8GHz |
| GPU | Adreno 506 |
| Operating System | Android 9.0 |
| RAM | 2 GB LPDDR3(Default)/4GB(Optional) |
| Storage | 16 GB eMMC(Default)/64GB(Optional) |
| Storage Expansion | Micro SD 128 GB |
| Communication | |
| Bluetooth | 4.2BLE |
| WLAN | IEEE 802.11a/b/g/n/ac; 2.4GHz/5GHz |
| Mobile Broadband | LTE, HSPA+, UMTS, EDGE, GPRS, GSM (Data and Voice) |
| GNSS | Standalone：2.5m |
| RTK Optional: 0.8 cm+1 ppm Horizontally ; | |
| 1.5 cm+1 ppm Vertically | |
| Radio(UHF) | Optional |
| Functional Module | |
| LCD | 10inch HD (1280 x 800), 1000cd/m² higher brightness, Sunlight readable |
| Touchscreen | Multi touch capacitive touchscreen |
| Sound | Build-in speaker 2W,8Ω 85dB |
| Internal microphones | |
| Interfaces | Type-C, Compliant with USB 3.0, (For data transfer; support OTG) |
| USB (TYPE-A) | |
| Headset jack ×1 | |
| Sensors | Acceleration sensors, ambient light sensor |
| Functional Module Environment | |
| Vibration test | MIL-STD-810G |
| Dust resistance test | IP6x(IEC60529) |
| Water resistance test | IPx7(IEC60529) |
| Operating temperature | -20° C ~ 65°C |
| Storage temperature | -20° C ~70° C |
| Interface | |
| RS232 | ×2 |
| RS485 | ×1 |
| ACC (ignition) | ×1 |
| Power | ×1 |
| CANBUS | CAN 2.0b ×2 |
| GPIO | Input×4，Output×4 |
| RJ45（10/100） | ×1 |
| AHD Video input Optional | ×2（1080P） |
| Analog input | ×1 |
| Physical Characteristics | |
| Power | DC8-36V (ISO 7637-II compliant) |
| Physical Dimensions(WxHxD) | 273×183×49mm |
Real-time Communication
Built-in Wi-Fi/ Bluetooth /GNSS/4G functions. Easily track and manage the equipment status.
Mobile Device Management
Integrated with MDM software, which is convenient for users to control the equipment status in real time and carry out remote control and management.
ISO 7637 -II
Complied with ISO 7637-II standard transient voltage protection. Withstand up to 174V 300ms vehicle surge impact. Support DC8-36V wide voltage power supply.
Accessories
