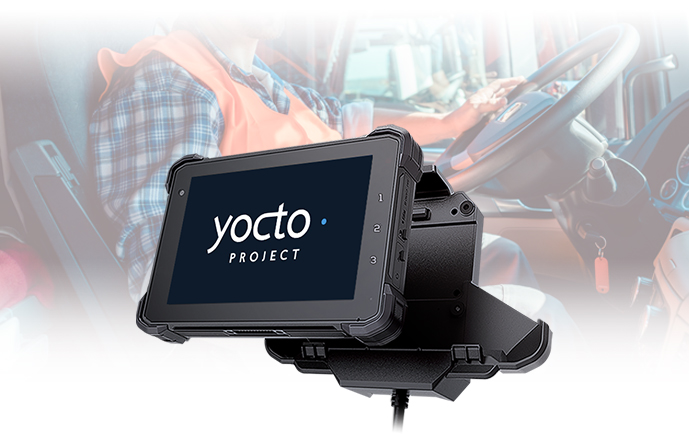

7 inch in-vehicle rugged tablet powered by Linux system
With rich wireless module and interfaces, makes it suitable for fleet management, smart agriculture, mining, etc.
高速存储突破极限
Yocto System
Based on Yocto system, it supports rich tools and methods for engineers to develop software according to their specific needs.
Built-in Wi-Fi/ Bluetooth /GNSS/4G functions making tracking and management of device status easier.
|
System |
|
|
CPU |
Qualcomm Cortex-A53 64-bit Quad-Core Process 2.0 GHz |
|
GPU |
Adreno TM 702 |
|
OS |
Yocto |
|
RAM |
LPDDR4 3GB (default)/4GB (optional) |
|
Storage |
eMMC 32GB (default)/64GB (optional) |
|
Functional Module |
|
|
LCD |
7 Inch IPS Panel, 1280 × 800, 800 nits |
|
Screen |
Multi-point Capacitive Touch Screen |
|
Audio |
Integrated microphone |
|
Integrated speaker 2W |
|
|
Sensor |
Acceleration, Gyro sensor, Compass, Ambient light sensor |
|
Interface |
1 × USB3.1 (can not be used simultaneously with USB Type-A) |
|
1 × Micro SD card, Support up to 1T |
|
|
1 × Micro SIM Card slot |
|
|
Standard 3.5mm earphone connector |
|
|
Extended Interface (Docking station version) |
|
|
RS232 |
× 2 |
|
POWER |
× 1 (8-36V) |
|
USB TYPE-A |
USB2.0 ×1 |
|
(can not be used simultaneously with USB Type-C) |
|
|
GPIO |
Input × 3, Output × 3 (standard); |
|
Input × 2, Output × 2 (optional) |
|
|
ACC |
× 1 (0-30V) |
|
CANBUS |
× 1 (optional) |
|
ANALOG INPUT |
× 2 (optional) |
|
RS485 |
× 1 (optional) |
|
RJ45 |
× 1 (optional) |
|
AV |
× 1 (optional) |
|
Environment |
|
|
Drop test |
1.2m drop-resistance |
|
IP rating |
IP67 |
|
Vibration test |
MIL-STD-810G |
|
Operating temperature |
-10°C ~ 65°C (14°F ~ 149°F) |
|
Storage temperature |
-20°C ~ 70°C (-4°F ~ 158°F) |
|
Communication |
|
|
Bluetooth |
2.1 EDR/3.0 HS/4.2 LE/5.0 LE |
|
WLAN |
802.11a/b/g/n/ac; 2.4GHz&5GHz |
|
GNSS (NA Version) |
GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS NavIC, L1 + L5; Internal Antenna |
|
GNSS (EM Version) |
GPS/BeiDou/GLONASS/Galileo/QZSS/SBAS, L1; Internal Antenna |
|
2G/3G/4G(US Version) |
LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 |
|
LTE TDD: B41 |
|
|
2G/3G/4G(EU Version) |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
|
LTE TDD: B38/B40/B41 |
|
|
WCDMA: B1/B2/B4/B5/B8 |
|
|
GSM/EDGE: 850/900/1800/1900 MHz |
|
|
Physical Characteristics |
|
|
Power |
DC8-36V (ISO 7637-II compliant) |
|
Battery |
3.7V, 5000mAh battery (only for docking station version) |
|
Dimensions (WxHxD) |
207.4 × 137.4 × 30.1mm |
|
Extended Interface (M12 connector version) |
|
|
RS232 |
× 2 |
|
USB |
× 1 |
|
POWER |
× 1 (8-36V) |
|
GPIO |
Input × 3, Output × 3 |
|
ACC |
× 1 (0-30V) |
|
CANBUS |
× 1 (optional) |
|
RS485 |
× 1 (optional) |
|
RJ45 |
× 1 (optional) |
Torx wrench &Torx screws USB to Type-C cable RAM 1" Double Ball Mount Power Adaptor (optional)
for RAM & SIM card plug with Backing Plate (optional)
Qt Platform
Support Qt 5.15 platform and various applications written based on Qt. We provide test demo programs written in Qt, which makes interface debugging and development more convenient and flexible.
Rugged IP67 design and 800 nits high brightness screen guarantee the application in varieties of harsh environments, suitable for vehicle, logistics, security and other industries.
Withstand up to 174V 300ms car surge impact
DC8-36V wide voltage power supply
With rich interfaces of RS232, CAN Bus, RS485, GPIO etc., customizable to meet different needs from users.
Rugged IP67 design and 800 nits high bright-ness screen guarantee the application in varities of harsh environments, suitable for vehicle, logistics, security and other industries.
